10 Layer HDI PCB

10 Layer HDI PCB

Other recommendations

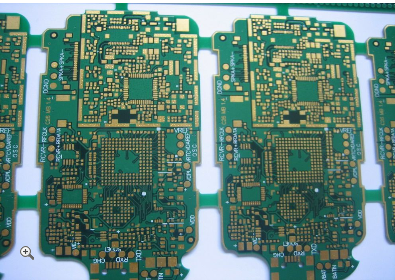

Overview


Layer count: 10
Material: FR4 ,1.6mm, TG 180, 1 OZ  for all layer
Minimum tack: 3mil
Minimum space(gap): 3mil
Minimum hole: 0.1mm
Surface finished: ENIG
Panel size: 390*368mm/4up
Characteristics: high density interconnect PCB,via on pad(plug with resin,and plate copper flat), high TG
Application:smart phone, cell phone, mobile
